TP-Link I Omada 5-Port Gigabit Desktop Switch (DS105G)
$29.00
Omada 5-Port Gigabit Unmanaged Desktop Switch
- 5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Plug and play, no configuration needed, and no management required
- Supports 802.1p/DSCP QoS and IGMP Snooping functions

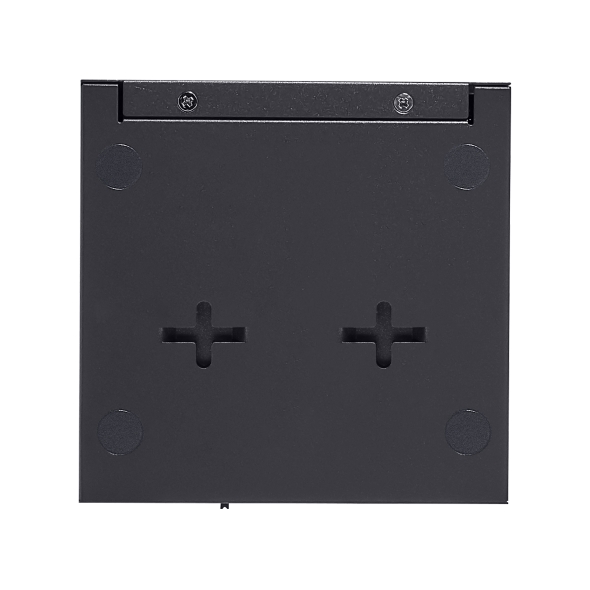

- Durable metal casing, desktop/wall-mounting options, and a fanless design
- IEEE 802.3x flow control provides reliable data transfer
- Green Ethernet technology reduces power consumption

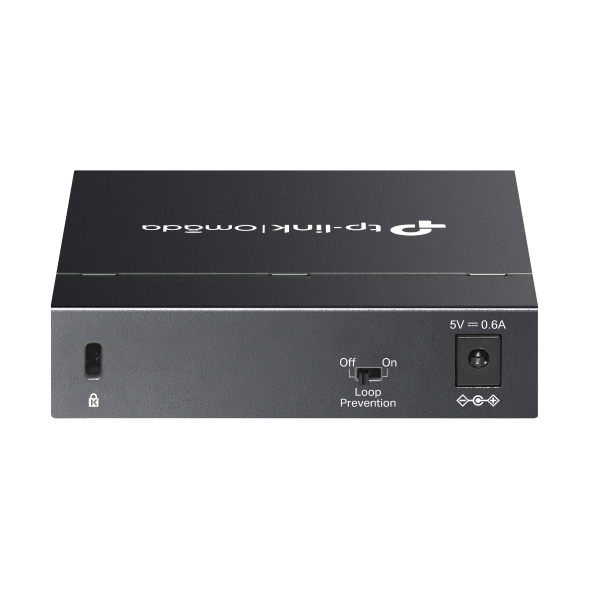

- Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping
or 4 payments of $7.25 with Wizit learn more
| HARDWARE SPECIFICATIONS | |
|---|---|
| Standards and Protocols | IEEE 802.3i/802.3u/802.3ab/802.3x, IEEE 802.1p |
| Interface | 5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
| Number of Fans | Fanless |
| External Power Supply | External Power Adapter (Output: 5 V DC / 0.6A) |
| LED Indicator | • Power • Link/Act indicators per port built into each RJ-45 port |
| Dimensions (WXDXH) | 3.9 x 3.9 x 1.0 in (100 x 98 x 25mm) |
| Max Power Consumption | 3.1W (220V/50Hz) |
| Max Heat Dissipation | 10.57 BTU/h |
| PERFORMANCE | |
|---|---|
| Packet Forwarding Speed | 7.4 Mpps |
| MAC Address Table | 2K |
| Packet Buffer Memory | 1 Mb |
| Jumbo Frame | 16KB |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | • Green Ethernet technology • 802.3X Flow Control • 802.1P/DSCP QoS • IGMP Snooping • Loop Prevention |
| Transfer Method | Store and Forward |
| OTHERS | |
|---|---|
| Certificate | CE, FCC, RoHS |
| Package Included | • DS105G • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
